Place of Origin:
Shaanxi,Xian
ชื่อแบรนด์:
SHACMAN
ได้รับการรับรอง:
ISO 9001/CCC
หมายเลขรุ่น:
F3000
| Attribute | Value |
|---|---|
| Model | SX5255JSQDR584 |
| Engine | WP10.340E22 |
| Transmission | RTD-11509C+QH50 |
| Axle | 7.5T/2*16 double stage axle, Axle speed-4.769 |
| Wheel base | 5775+1400 |
| Tire | 12.00R20 |
| Fuel tank | 300L |
| Clutch | φ430 Diaphragm spring clutch |
| Air inlet | Ordinary air filter |
| Chassis | 850×300（8+5+8） |
| Suspension | Front /rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts |
| Cabin | Low roof cab |
| Color | Neon Red/Green Mountain Green/Star and Moon Blue/Aurora White/Klein Blue/Brandy |

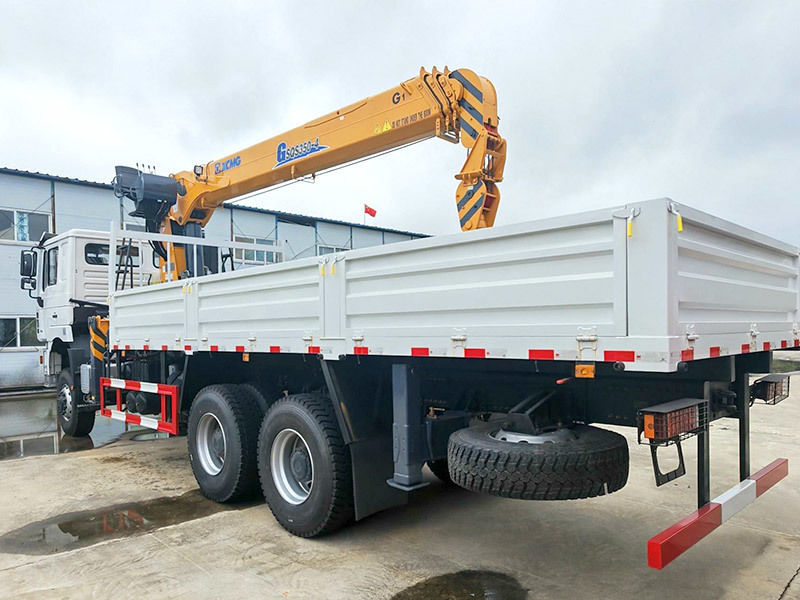

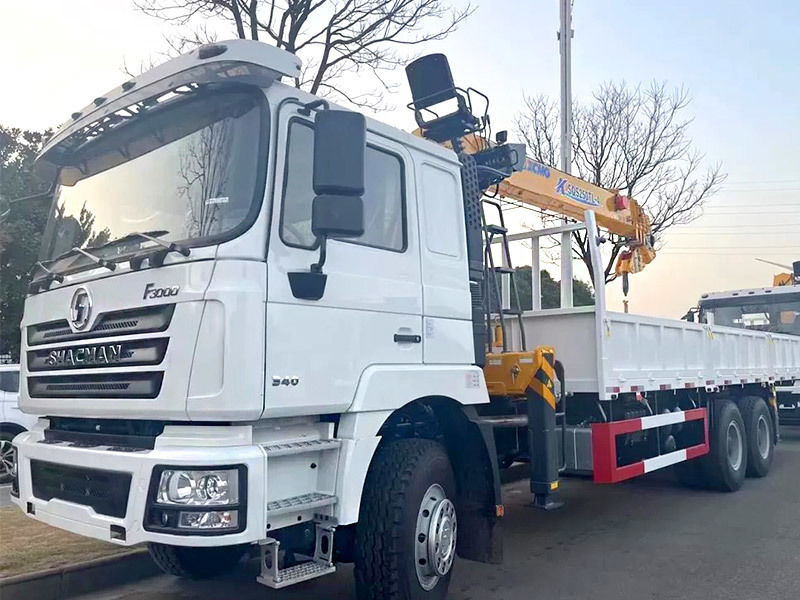

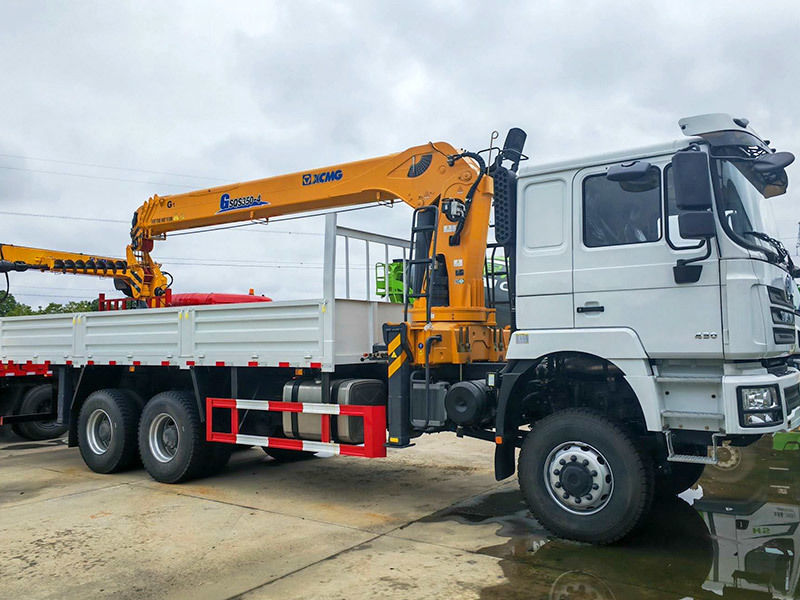

The SHACMAN F3000 6x4 Crane Truck with 340Hp/380Hp is a heavy-duty vehicle designed for lifting and material handling operations.
| Parameter | Specification |
|---|---|
| Drive type | 6x4 |
| Gross Vehicle Weight | ≤35 tons |
| Wheelbase | 5775+1400 mm |
| Maximum speed | 50～70/90 km/h |
| Ground clearance | >314 mm |
| Engine Brand | WEICHAI |
| Engine Model | WP10.340E22 |
| Engine Power | 250kw / 300Hp |
| Maximum torque | 1400 N*M |
| Displacement | 9.726 L |
| Emission standard | Euro II |
We are based in Shaanxi, China, established in 2015. Our primary markets include Africa (70%), Southeast Asia (10%), and Central America (10%).
Pre-production samples are always available before mass production. Final inspection is conducted before shipment.
We offer dump trucks, track trucks, lorry trucks, van trucks, and mixer trucks.
We accept various delivery terms (FOB, CFR, CIF, etc.) and payment methods (T/T, L/C, D/P D/A). Languages spoken: English, French.
